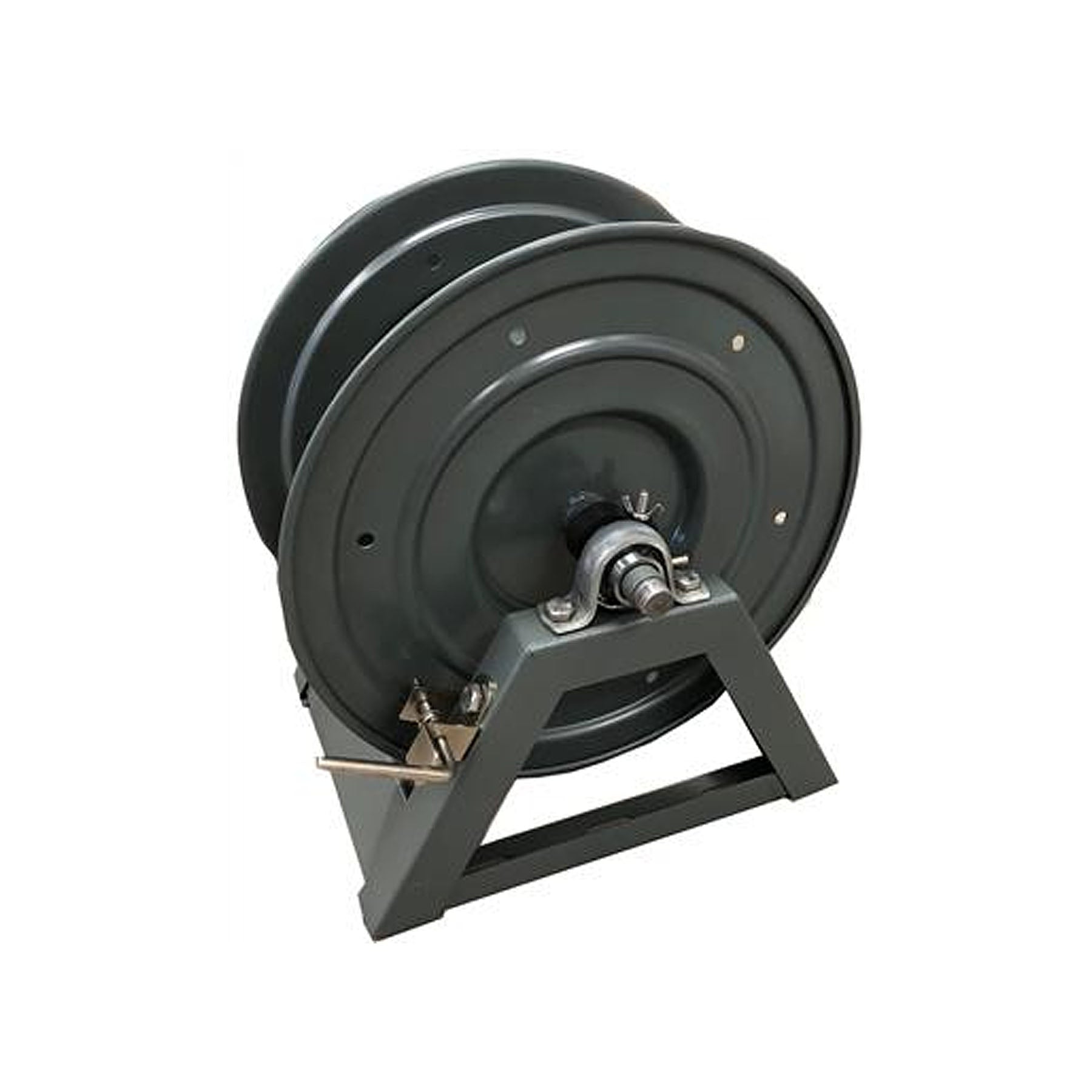

BAR A Frame High Pressure Hose Reel - 30m

Note:

• Please be aware that this item is located in a different warehouse.
• Additional shipping fees may apply based on delivery address. Final cost will be emailed after order placement for payment.
• There will be a 2-3 day processing period before dispatch. Standard delivery periods apply and this varies depending on final delivery address.

The BAR A Frame hand crank hose reel is comparable to the Coxreel style reel commonly found in workshops, manufacturing facilities, and construction sites. It offers organized hose storage and dispensing, improves safety by eliminating tripping hazards, and extends the life of your hoses. With its sturdy construction, this reel is built to last and can easily accommodate pressure hoses up to 30m in length. It is a heavy duty unit that must be securely fastened to a solid wall using bolts.

This reel is designed to accommodate stock Kranzle hoses with a larger diameter, as the outlet hose is fed through the larger opening in the middle barrel.

Features

• This reel is compatible with hoses ranging from 1/4" to 5/16" and 3/8", with a maximum length of 30 meters.

• Heavy Duty A-Frame Crank Reel

• A Frame style provides more support in mobile applications

• Universal 130 mm hole centre footprint

• High gloss powder-coated finish

• Extra heavy duty 6 point locking pin and adjustable rubber friction brake

• Dual heavy-duty sealed axle ball bearing with stainless steel hardware

• High-flow stainless steel swivel with Parker Viton O-Rings

• The reversible handle and swivel, let you switch sides for the best mounting option

• Hose guide to guard hose from reload damage (2100462)

• HOSE NOT INCLUDED

Specifications

• Capacity: Up to 30 m of 3/8” hose or smaller in diameter

• Max Pressure: 5,000 PSI

• Inlet Hose Connection: 3/8" (F) BSP


• Outlet Swivel Connection: 3/8" (F) BSP

• Material: Stainless Steel

• Dimensions: W 30 cm x H 43 cm x D 36 cm

• Weight: 5 kg
